INTRODUCING THE SVX-4
THE SVX-4 IS IN A CLASS OF ITS OWN.
UNCOMPROMISING ON ALL ASPECTS OF AN EXPEDITION VEHICLE.
DEVELOPED FOR TRUE EXPLORATION.
CLASS LEADING
KEY FEATURES
500
BATTERY CAPACITY
AMP
750
SOLAR CAPACITY
WATTS
3,000
INVERTER
WATTS
WATER CAPACITY
LITRES
270
Click To Expand
TARE WEIGHT:
ATM WEIGHT:
BALL WEIGHT:
PAYLOAD:
BODY LENGTH:
OVERALL LENGTH:

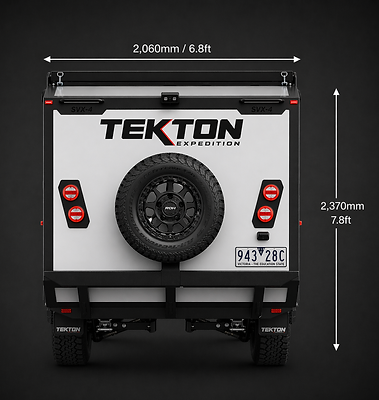

WIDTH:
SUSPENSION:
For full specifications, model options & pricing please download a brochure.
1,450kg
2,800kg
90kg
1,350kg
4,000mm / 13.1ft
5,360mm / 17.5ft
2,000mm
TEKO INDEPENDENT AIR BAG SUSPENSION SYSTEM WITH FOUR SHOCK ABSORBERS
ENGINEERED
CHASSIS
The SVX-4 chassis has been certified engineered (FEA Tested). Manufactured autonomously from the body. Utilising the latest laser/CNC processes.
The chassis has been designed and engineered, as a one piece chassis.
Unlike traditional chassis over A-Frame designs, this allows for better articulation, on/off road performance and manoeuvrability.
Additional benefits of the sealed one piece Tekton chassis, is the prevention of any dust, water or sand ingress.
The removable rear bar provides protection and a place for a spare tyre or any other accessories you wish to add.
The rear of the chassis, has been equiped with rear recovery points and can be optioned with a rear recovery winch.
AGILITY
SUSPENSION
The SVX-4 suspension has been developed for expedition intent, absorbing corrugations and rutted terrain.
The SVX-4 is equipped with Teko independent air bag suspension. Featuring air bags and four shock absorbers.
The on board air compressor and air tank, have been mounted internally. Protecting them from dust and water ingress.
A tyre inflation kit is also provided.
The majority of other high end off road caravans & campers, fitted with independent airbag suspension set ups, have around 130mm / 5 inches of travel.
The SVX-4 has 250mm / 9.8 inches, almost double the travel over some of its competitors. Features like remote control and auto levelling are available.
The SVX-4 stud pattern can also be configured to match your tow vehicle, along with rims & tyres.
INNOVATION
COMPACT FOOTPRINT
The SVX-4 utilises our innovative and exclusive proprietary design. Leading to a reduced overall footprint, without compromise on internal living space.
While maintaining an extended A-Frame. The SVX-4 is over 2ft smaller overall (hitch to rear body) than its competitors.
By comparison, other campers or caravans
with the same size body as the SVX-4 (4 metres/13.1ft). Have an overall length in excess of 6 metres, while the SVX-4 has an overall length of 5.3 metres.
This enables better manoeuvrability and articulation both on/off road. Allowing you to access places others can only dream of in the same body size camper or caravan.
The SVX-4 is the only camper or caravan on the market, with an internal shower/toilet ensuite, fixed queen bed (that does not need to be lifted during the day).
Internal face to face seating and kitchen, on an overall length of 5.3 metres.
AERODYNAMIC
BODY CONSTRUCTION
The SVX-4 body is constructed out of 30mm woven-roven fibreglass/XPS foam core composite panel. Including the body (side walls, front & rear), roof and floors.
Featuring our unique monocoque/unibody design, with no joins, built as one sealed unit.
The entire SVX-4 body is then coated in a 2K epoxy primer and finished in a urethane protective coating, in a colour of your choice.
Providing an extremely energy and thermal efficient compartment, able to withstand the most extreme climates all over the world.
Due to our unique design, we have been able to create one of the most aerodynamically efficient vehicles on the market.
The SVX-4 is also 40% lighter than its competitors with the same floor plan, size and specifications sheet.
Providing you with lower fuel costs when travelling.
PURPOSEFUL
EXTERNAL FEATURES
The SVX-4 features an all new 2023 external kitchen, with over a metre of preparation space, a large sink, with drain board and built in hot & cold water, plus a 2 burner induction cooktop.
With plenty of draws for cutlery, plates & cups, as well as a large pots/pan draw and pantry draw.
You will also find a body mounted pantry conveniently located next to the kitchen and picnic table. All of which is covered by the 3.5 metre box awning or 180 degree awning.
External storage is located towards the front of the van, in the body mounted hatches, tunnel boot and front toolbox. Which can be configured with a fridge slide (Tunnel boot LHS), BBQ slide (Front toolbox LHS), generator slide (Tunnel boot Or Front toolbox RHS) etc.
The SVX-4 also has a wood rack and two side jerry can holders.
A bull finch external shower can be found on the right hand side of the camper.
An external shower ensuite is also available.
COMFORT
BED AREA
The interior of the SVX-4 features a large queen bed, bed side tables, side storage pods and plenty of under bed storage compartments.
Featuring 2 three speed adjustable Sirocco fans and a thermo diesel heating system. Air conditioning systems are also available.
With elegantly placed mood lighting throughout the cabin, you can relax in comfort and style while exploring remote places.
The SVX-4 can also be configured with bunk beds, turning it into a great family explorer.
PRACTICAL
KITCHEN & DINNING
The SVX-4 Features an internal kitchen and has been designed for practicality.
With the use of high quality materials, such as ABS composite cabinetry and premium bench-tops. Equipped with soft close cupboards & draws, two burner portable induction cooktop and an 85 Litre compressor fridge / freezer (130 litre upgrade available), with plenty of usable bench space and storage.
A face to face cafe dinette is the perfect entertaining area, which can double as a sleeping area. Featuring bespoke leatherette and stitching designs, carrying through from the bed area.
LUXURY
ENSUITE
The SVX-4 features an internal ensuite, with a shower and toilet.
The ensuite has been designed for functionality, fitted with two waterproof storage compartments, perfect for storing toilet paper and towels.
The use of high end fixtures and fittings throughout the ensuite.
Equipped with an external hot & cold shower, that can be optioned with an external ensuite.
PERFORMANCE
The SVX-4 is fitted with a custom Victron energy power management system.
With 500 amp lithium battery (Electric vehicle cell grade), 750 watts of twin cell mono crystalline solar panels, 3000 watt pure sine wave inverter with automatic AC transfer, 120 amp AC charger, 50 amp DC-DC charger and 80 amp MPPT solar charger. you will be able to stay off the grid longer.
700 amp lithium battery upgrade and 830 watt solar upgrade available.
Integrated touch screen display and app allows you to monitor battery state of charge, water levels, solar and anderson inputs.
ELECTRICAL
